How Industrial Steam Systems Work

Steam systems transfer thermal energy from the point of generation to the processes that require heat. Steam is produced at the pressure required by the facility and distributed through insulated piping to individual process loads.

At the point of use, steam transfers heat through equipment such as heat exchangers, coils, jackets, or direct injection. In indirect applications, the steam condenses as it releases heat. Steam traps remove this condensate while minimizing the loss of live steam.

Where condensate is recovered, it is returned to the steam-generation equipment. Because it retains both heat and treated water, this reduces makeup water, water treatment demand, and the energy required to produce additional steam.

Across the system, insulation, pressure controls, steam traps, valves, and other components help maintain operating conditions and reduce avoidable energy losses. Their performance directly affects the amount of energy required to meet process steam demand.

The Role of Steam in Industrial Processes

Steam is widely used for industrial process heating because it can transfer large amounts of thermal energy at a controlled temperature. As steam condenses, it releases heat efficiently to process equipment or directly to the material being heated, making it well suited for applications that require consistent, controllable heat.

Steam can also be distributed throughout a facility from a central generation point, allowing a single steam system to serve many different process loads. Because the distribution system is separate from the equipment that generates the steam, facilities can incorporate different steam-generation technologies, including boilers and industrial heat pumps, while continuing to serve existing process loads.

Common industrial applications for steam include:

• Food and beverage: Cooking, pasteurization, sterilization, drying, and evaporation
• Pulp and paper: Drying paper, heating process water, and supporting pulping and other thermal processes
• Chemicals: Heating reactors and process streams, distillation, evaporation, and other temperature-controlled operations
• Textiles: Dyeing, washing, drying, and finishing fabrics

Reducing Steam Costs through System Efficiency

Steam cost depends on both how steam is generated and how efficiently it is distributed and used. Leaks, failed steam traps, heat loss, unrecovered condensate, and inefficient generation all increase the purchased energy required to meet process demand.

Common opportunities to improve steam system performance and reduce energy use include:

• Repair steam leaks and maintain steam traps: Preventing live steam from escaping reduces unnecessary steam generation.
• Maintain insulation: Insulating steam and condensate lines, valves, and other equipment limits heat loss throughout the system.
• Recover condensate: Returning hot condensate preserves thermal energy and treated water, reducing energy, water, and treatment requirements.
• Optimize steam generation and pressure: Matching generation to demand and maintaining appropriate pressure levels reduces avoidable losses while meeting process requirements.
• Recover available heat: Heat from exhaust, blowdown, flash steam, condensate, and other sources can often be reused rather than rejected.

Beyond reducing losses within the steam system, facilities can also recover heat from industrial processes and reuse it to produce steam. Industrial heat pumps can expand this opportunity by upgrading lower-temperature heat that otherwise may not be directly usable.

How Arcturus Integrates with Existing Steam Systems

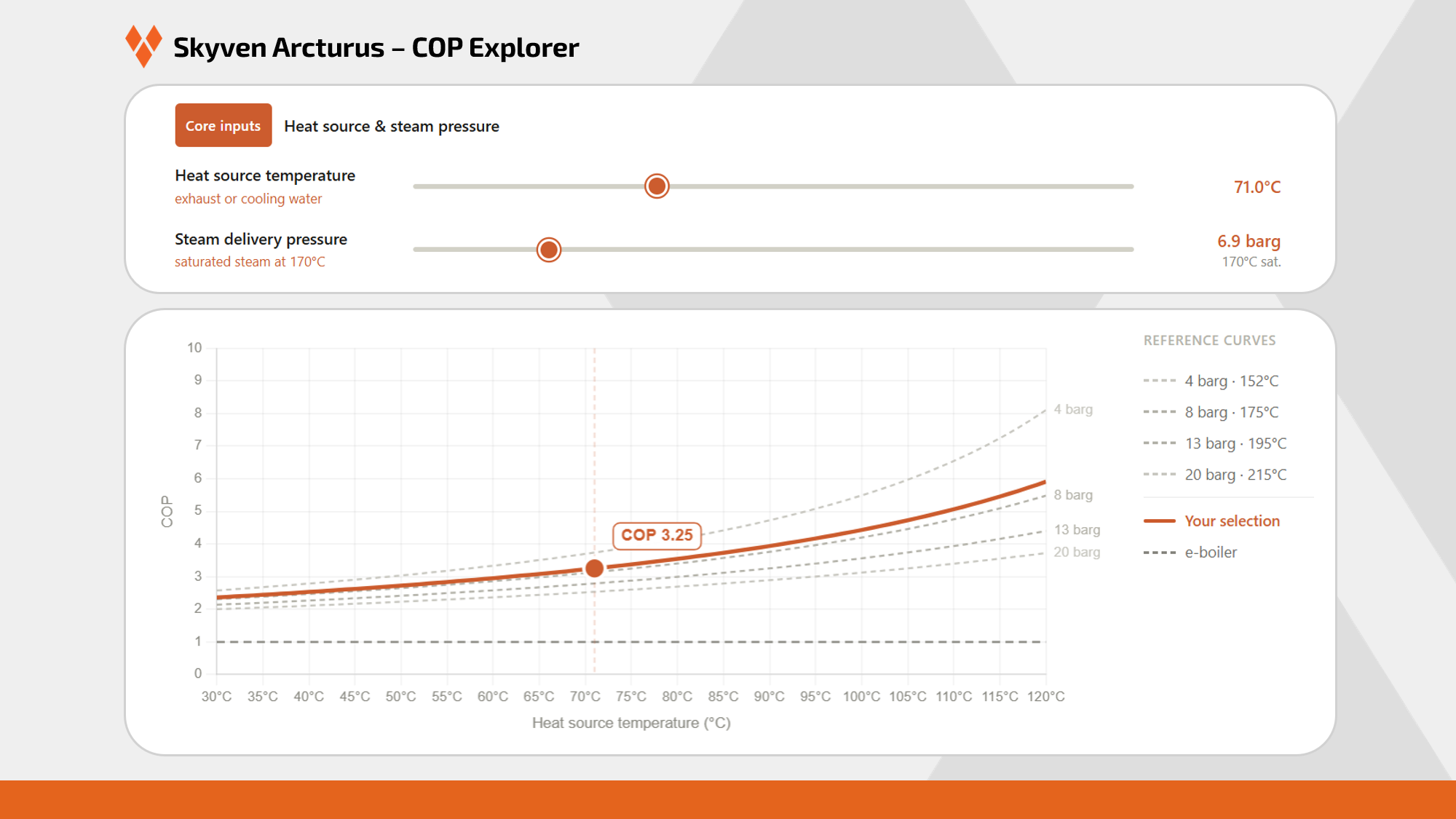

Skyven Arcturus is an industrial high-temperature heat pump that adds a new source of steam to an existing steam system. It recovers waste heat from industrial processes, increases its temperature, and uses that energy to generate boiler-quality steam at the pressure and temperature required by the facility.

Arcturus is installed in parallel with existing boilers rather than replacing them. This allows facilities to use Arcturus for efficient, lower-cost steam generation while retaining their existing boiler capacity for backup, peak demand, or periods when boiler operation is more economical.

Because Arcturus works with the facility’s existing steam distribution and process equipment, its integration can be designed around existing plant operations. Each system is configured for the facility’s available heat sources, steam requirements, and operating conditions to optimize performance and steam cost.
